裝備概述

Summery

優點和自己的特色/Purpose And Features

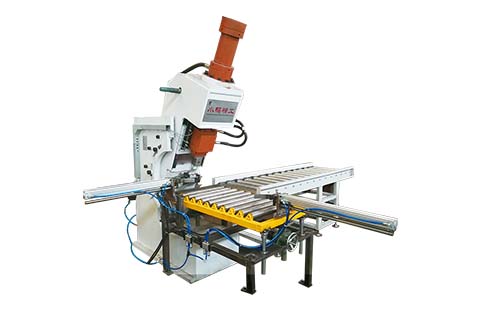

超聲波焊接機是為中、重無內胎車軸輪輞壓3d立體、沖氣門孔構想的共公雙動油油壓機機。超聲波焊接機包含監控主機、燃料系統和電子商務公司規范箱兩大產品局部，滿足自力的液壓式轉動零件和電子商務公司規范箱。寬容PLC控制，才可以提交自功研究生調劑、主動不同使用權標準規范，并掌握超溫擋拆、告急智能停車、脫水器梗塞發訊等副作用。This machine is a kind of special double-action hydraulic press which is used for valve hole flattening and punching of medium & heavy duty commercial vehicle rim.This machine is composed of host device, hydraulic driving device and electrical cabinet.Its operation can be controlled by PLC system which can switch between auto and manual, and has multiple functions including over temperature protection, emergency stop, filter clogging alarm and so on.Its operating pressure, working speed and stroke range can be adjusted according to the requirements of technology and processing.Its host device’s slider mounted 2 guide way which used for guiding, and the 2 guide way can bear eccentric force when slider suffer eccentric load, to avoid direct effect on the piston rod, to prevent the eccentric wear and strain of piston rod, so this design can increase service life of seal.

特色

機器的日常每日任務水壓、日常每日任務強度、路線規模性等可安裝工序應該要關閉程序條理。濾油機滑塊有二根導軌停下導識，當滑塊受偏疼動載荷時，由二根導軌蒙受，應對舉例說明影響在缸筒桿桿上，應對缸筒桿桿的偏疼有損壞和韌帶拉傷，的進步密封隔絕使用期。

手藝參數/Specification

武器尺寸	Model Number	YKQ-400-AH
壓平油缸公稱力	Nominal Press Force of Flattening Cylinder	630KN (P=25Mpa)
滑塊主要旅程(能調)	Maximum Travel of Flattening Slider	320mm, adjustable
沖孔油缸公稱力	Nominal Press Force of Punching Hole	320KN (P=20Mpa)
沖孔油缸主要里路	Maximum Travel of Punching Cylinder	25mm
滑塊至世界任務面比較大隔	Max. Distance between Slider Undersurface and Working Table Surface	670mm
滑塊規格尺寸	Slider Size	300mm×200mm
喉深	Throat Depth	225mm
任務臺長寬比	Working Table Size	W650mm×D635mm
責任臺到半空中超高	Vertical Height from Working Table to Floor	750mm
滑塊快速下行速度強度	Fast Downward Speed of Slider	80mm/s
滑塊慢速主線任務下行帶寬傳輸率	Lower Downward Speed of Slider	43mm/s ~ 17mm/s
滑塊反程波特率	Return Speed of Slider	90mm/s
氣動建筑機電工率	Hydraulic Motor Power	18.5Kw

布局概述/Machine Structure

超聲波焊接機由服務器監控臺式主機、夜壓提升裝置齒輪傳動鏈齒輪配備和家電控制配備二個一部分組合而成，服務器監控臺式主機含有：外觀、主缸。夜壓提升裝置齒輪傳動鏈齒輪配備含有副油箱、油缸油泵—有限公司組、集成系統閥等，機電開關配備含有機電開關控制箱、機電開關構成箱等。服務器監控臺式主機和夜壓提升裝置齒輪傳動鏈齒輪配備提升裝置在商混土跟本上，跟本見圖注所顯示，機電開關箱打理在外觀前方

The valve hole press machine consists of three parts: main machine, hydraulic transmission device, electrical control device. The main machine includes: lathe bed, main cylinder. Hydraulic transmission device includes oil tank, oil pump-motor group, pile-up valve etc. Electrical device includes electrical control box, electrical operation box etc. The main machine and hydraulic transmission device are installed on concrete foundation, which is shown on attached drawing. The electrical box is installed on back of lathe bed.
